TPMS KIT

Monitor tyre pressure from within DMD2.
A kit of two TPMS valve caps, easy to install and easy to setup.

Battery Powered
Bluetooth Low Energy Technology
Reports pressure and temperature

Integrated with DMD2:

Turn DMD2 into the complete dashboard that it can be!

–

Not just navigation but real-time motorcycle data too!

Keep your tyre pressure in control
–

Features:

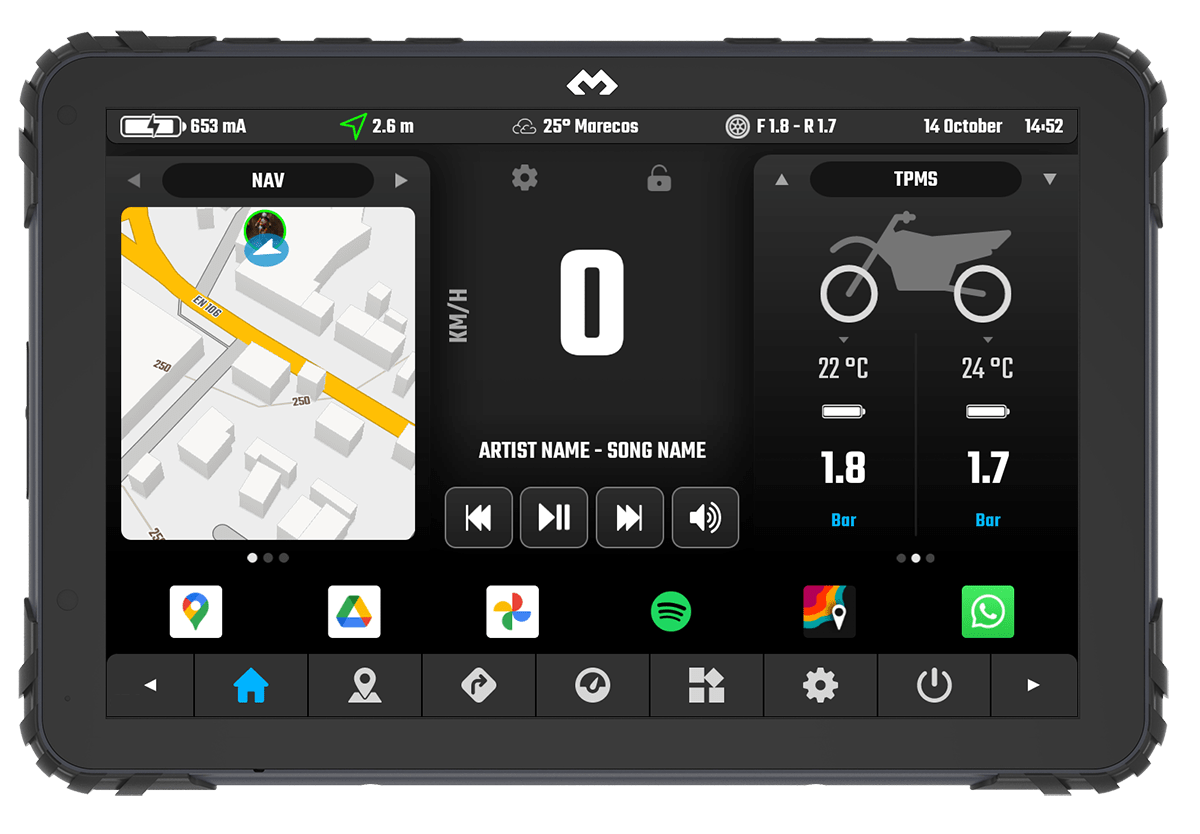

Add tyre pressure and temperature widget to the home screen
Add tyre pressure to the top status bar
Configure low pressure alarm
Enable slow leak warning
Add tyre pressure widget to the map view
Add tyre pressure widget to the OBD view (coming soon)
Also available in 4 wheel setup!

Easy installation and configuration:

Easy to setup

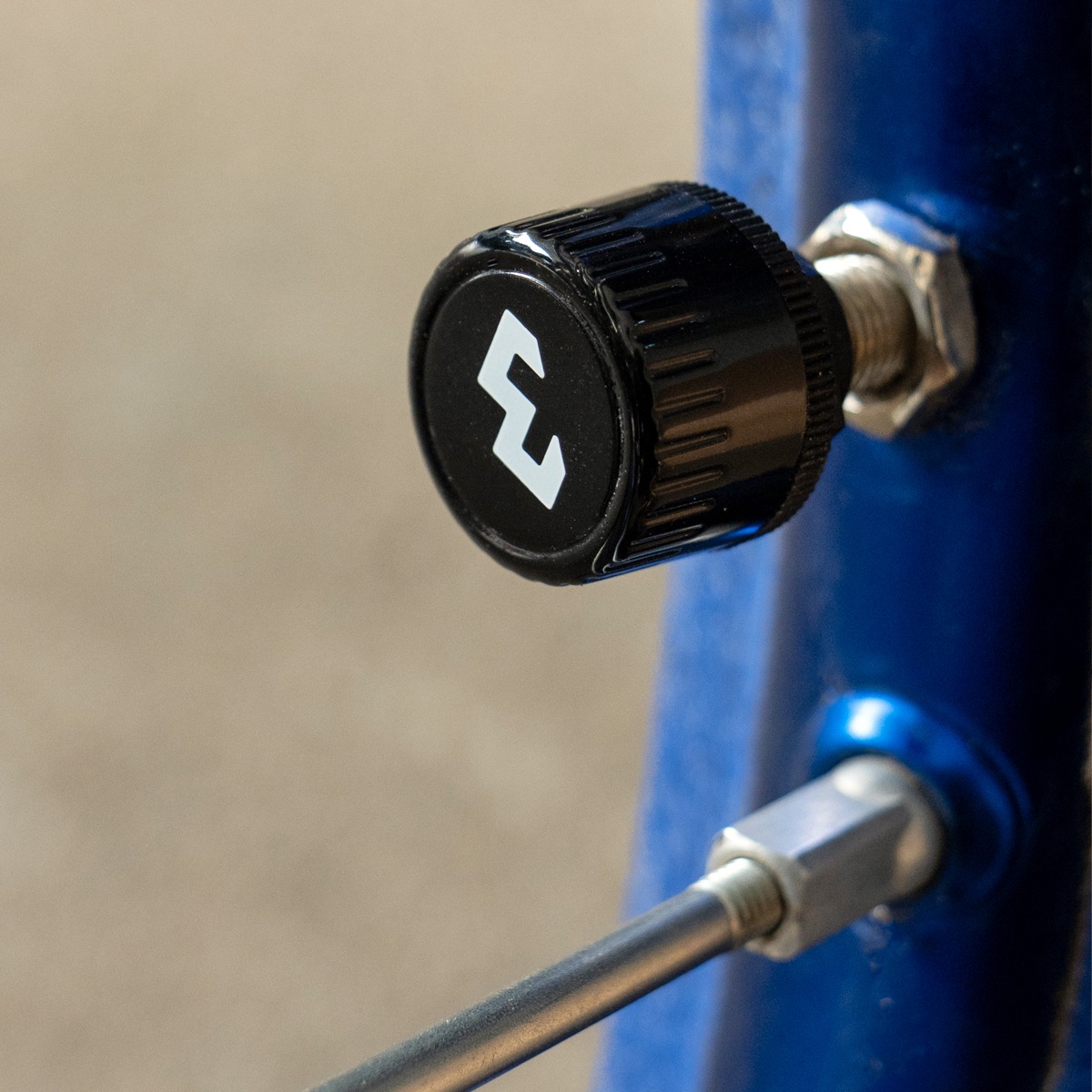

Configure a widget space with the TPMS widget, click the add button, attach the sensor to your wheel valve and choose the sensor in the dialog.

It´s that easy…

So i do not know how to fill this box to make it look taller and better framed.

So i am adding this text that adds nothing to the product.

Oh wait, i know what to write! The video was done by our user Nomad Sweden, he allowed us to use it for the product page, what a cool guy! You should follow him on youtube, we do!

PS. We do not make many videos because we usually put that time on development instead! (just thought this would make us sound cool).

BUY NOW

Built Tough:

Ready for adventure riding, tough and strong! Can handle the high demands of enduro riding!

Certified Quality

CE certified / RoHS

Battery Type: CR1632 (sensor). Operating life up to 1 year.
Operating Temperature: -40°C to +85°C (sensor), -20°C to +60°C (sensor with common CR1632 batteries)
Weight: 7.6g (sensor –with battery)
Sensor Dimension H x D: 13.8mm x 20.2mm
Maximum Pressure: 800kPa (116psi)
ESD: 8kV air discharge & 4kV direct contact discharge according to CE standard
Dust and Water Proof: IEC60529 compliant to IP57(sensor)
Sensor structural threshold: 100N ball pressure intensity test
Mechanical & Environmental Reliability Testing Standards:
IEC 60068-2-2, IEC 60068-2-1, ISO 21750, IEC 60068-2-29, IEC 60068-2-5, IEC 60068-2-32, ISO 15184, ISO 2409, SAE J2657, SAEJ113/13

With Security Lock!

With anti-theft nut and key included.

Inside each box you will find 2 sensors, ideal for motorcycle use, if you intend to use it in a 4×4 vehicle you will need two kits.

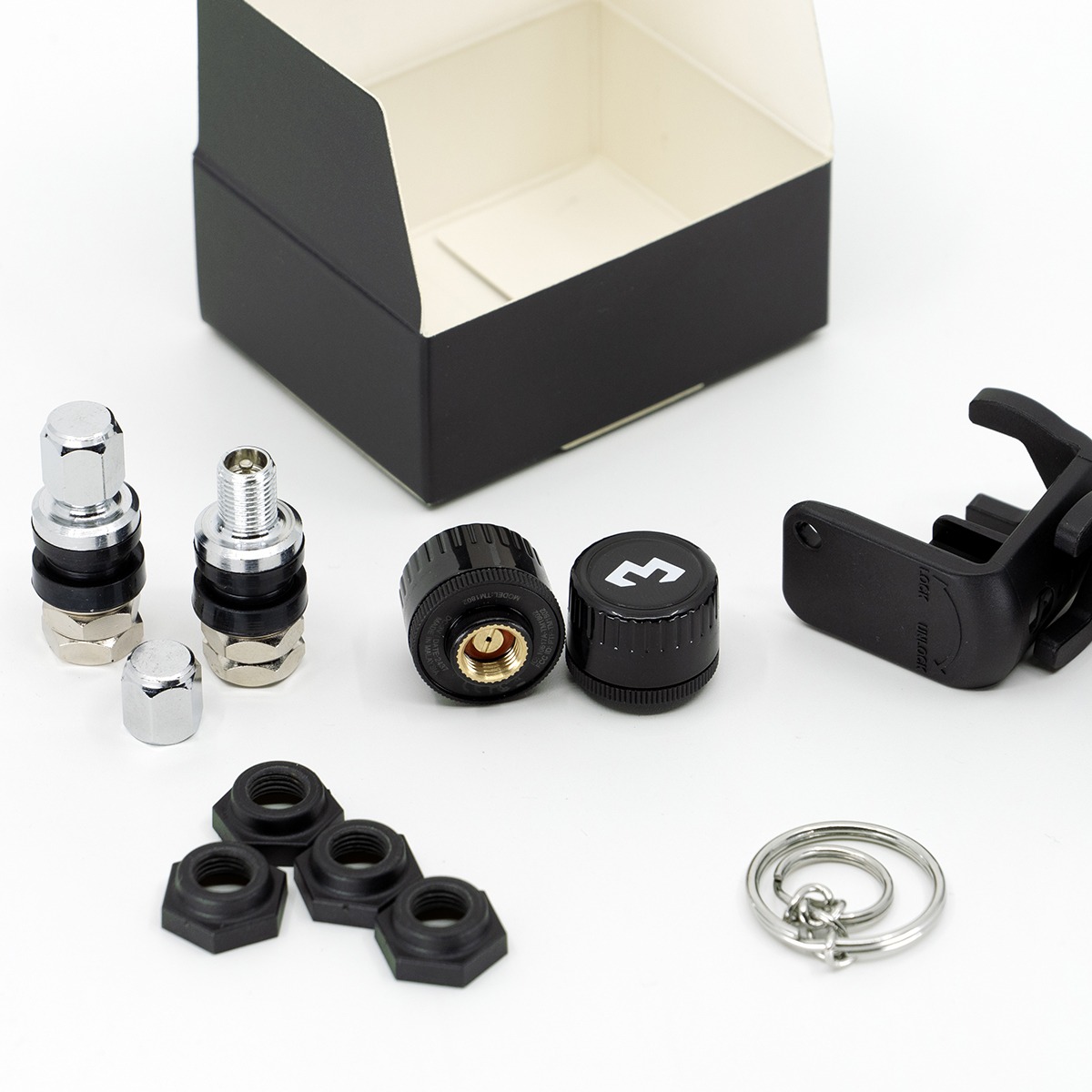

The full box content is as following:

2x BT Valve Cap Sensors
4x Security Lock Nuts
2x Security Wrench
2x Short Metal Valves for Tubeless Tyre
1x Keychain for Security Wrench

BUY NOW
